500000 Kcal KV 50 Waste Oil Burner 8 Bar Working Pressure Apply To Reactor

China 500000 Kcal KV 50 Waste Oil Burner 8 Bar Working Pressure Apply To Reactor supplier
500000 Kcal KV 50 Waste Oil Burner 8 Bar Working Pressure Apply To Reactor supplier 500000 Kcal KV 50 Waste Oil Burner 8 Bar Working Pressure Apply To Reactor supplier 500000 Kcal KV 50 Waste Oil Burner 8 Bar Working Pressure Apply To Reactor supplier 500000 Kcal KV 50 Waste Oil Burner 8 Bar Working Pressure Apply To Reactor supplier

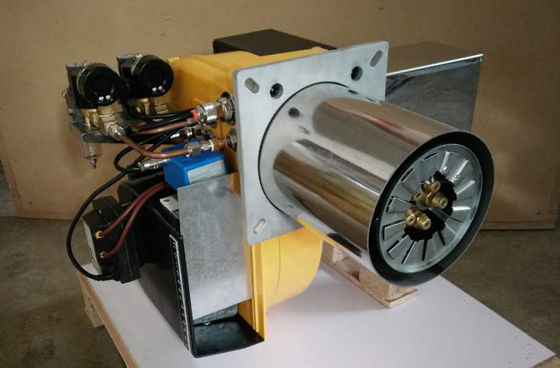

Large Image :  500000 Kcal KV 50 Waste Oil Burner 8 Bar Working Pressure Apply To Reactor

Product Details:

Place of Origin: CHINA
Brand Name: KING VITAL
Certification: CE
Model Number: KV50

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: one unit:plywood box with foam for express to door.package size:70x58x55cm.G.W:58kg
Delivery Time: 15 days for one unit
Payment Terms: Western Union, T/T,Visa,Master Card
Supply Ability: 1000 unit per month
Detailed Product Description
Item: Waste Oil Burner Max.output Heat: 500 000Kcal/h (20,00 000Btu/h)
Output Power: 230-460kw Oil Consumption: 35-45l/h
Tube Diameter: 160mm Fuel: All Kinds Of Waste Oil,diesel Oil
Application: Reactor,0.8t Boiler,furnace,oven,grain Dryer Etc Feature: Large Supply,well Proven,apply For Reactor
High Light:

smokeless waste oil burner

,

waste oil burner furnace

Large Supply KV50 460kw Well Proven 500 000Kcal Waste Oil Burner For Reactor



Feature



  • KV50 is well proven and recognized by customer
  • max reach 500 000Kcal,460kw
  • available to use in reactor,boiler,furnace etc
  • whole oil pump&filter system etc is in the parcel
  • As a direct factory for 15 years,we have long-term,large and stable supply ablility.moq is 1 unit



Parameter



Model KV50
Max.output heat 500,000Kcal/h (20,00,000Btu/h)
Output power 230-460kw
Oil consumption 35-45 liter/hour
Tube diameter 160mm
Tube length 188mm
Nozzle siphon brass 5x2.0mm
Heating pipe 1.1kw
Motor power 750w
Working pressure 8 bar
Power 220v 50hz or 110v 60hz
Size 640x550x660mm
N.W 34kg
Fuel all kinds of waste oil,diesel oil
Application 0.8t boiler,furnace,oven,heater,grain dryer



Available fuel list
used engine oil/motor oil used crankcase oil used transmission oil used hydraulic oil
used synthetic oil waste machine shop cutting oil used grades #1,#3,#4 heating oils used mixed oil
used diesel oil used cooking oil used vegetable oil/animal fat oil Soybean oil
diesel oil waste car oil used tyre/rubber pyrolysis oil waste plastic oil........
✘gasoline,heavy oil,water



showcase

500000 Kcal KV 50 Waste Oil Burner 8 Bar Working Pressure Apply To Reactor



special tips when use

  1. Our burner must work with one unit external air compressor.For kv50 model,we recommend to use 0.7-1.0cbm/min air compressor
  2. Keep the first gauge reading less than 1kg/cm2,the second one between 0.5-1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to clock the number.
  3. Oil pump will pump oil automatically,do not fill small tank by yourself.
  4. Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
  5. Please make sure no water in the fuel
  6. Do not change original setting casually,such as air flap's position.
  7. Do not touch the small oil tank,it can be very hot
  8. If you meet any trouble,please take a video for us,we will tell you how to manage.

Why choose KING VITAL burner



    -Our burner is ture waste oil system,use pc board to control,not siemens controller

    -Our burner is patented to be high efficient combustion

    -test well before leave factory

    -CE approval

    -Environment friendly,own air pollution certificate issused by China Environmental Station

    -Durable,no vulnerable parts,quality warranty for one year,spare parts for life time



About us



We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.

All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.

You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
