High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty

Certification
Good quality Waste Motor Oil Burner for sales
Good quality Waste Motor Oil Burner for sales
the burner very very good,work good and save alot of money

—— Malkof

The burner that i bought from you is excellent

—— Jessie

the kv-10 unit works super at the first week.I heat 400m2 with it

—— David

today I found three customers they are ready to buy with no hestiate

—— Yasser

we bought last year,now we need more

—— Jay

I'm Online Chat Now

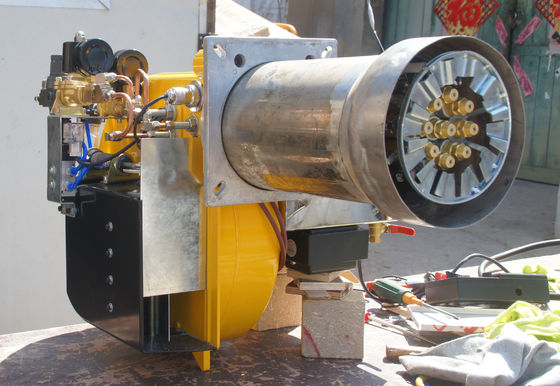

High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty

China High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty supplier
High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty supplier High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty supplier High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty supplier High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty supplier

Large Image :  High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty

Product Details:

Place of Origin: CHINA
Brand Name: KING VITAL
Certification: CE
Model Number: KV90

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2000-$3000usd per unit
Packaging Details: one unit:plywood box with foam for express to door.package size:75*59*60cm.G.W:75kg
Delivery Time: 15 days for one unit
Payment Terms: T/T,Visa,Master Card,Western Union
Supply Ability: 1000 unit per month
Detailed Product Description
Item: Waste Oil Burner Max.output Heat: 900 000Kcal/h (36,00 000Btu/h)
Output Power: 850-1000kw Oil Consumption: 70-80l/h
Tube Diameter: 160mm Fuel: All Kinds Of Waste Oil,diesel Oil
Application: 1.5 Boiler,,reactor,furnace,oven,grain Dryer Etc Feature: Bigger Power,three Fire Stage
High Light:

waste oil system

,

mini waste oil burner

bigger power three fire stage 900 000Kcal waste oil burner with factory price



Feature



  • KV90 is a big power burner,three fire stage,reach max 900 000Kcal
  • durable,no vulnerable parts,fully automatic
  • flame stable,efficient combustion
  • safe to use,two high quality flame detector inside
  • one year quality warranty,spare parts available life time



Parameter



Model KV90
Max.output heat 900,000Kcal/h (36,00,000Btu/h)
Output power 850-1000kw
Oil consumption 70-80 liter/hour
Tube diameter 160mm
Nozzle siphon brass 9x2.0mm
Heatng pipe 2.0kw
Motor power 1.0kw
Working pressure 8 bar
Power 220v 50hz
Size 750x590x600mm
N.W 75kg
Fuel all kinds of waste oil,diesel oil
Application 1.5t boiler,furnace,oven,grain dryer



Available fuel list
used engine oil/motor oil used crankcase oil used transmission oil used hydraulic oil
used synthetic oil waste machine shop cutting oil used grades #1,#3,#4 heating oils used mixed oil
used diesel oil used cooking oil used vegetable oil/animal fat oil Soybean oil
diesel oil waste car oil used tyre/rubber pyrolysis oil waste plastic oil........
✘gasoline,heavy oil,water

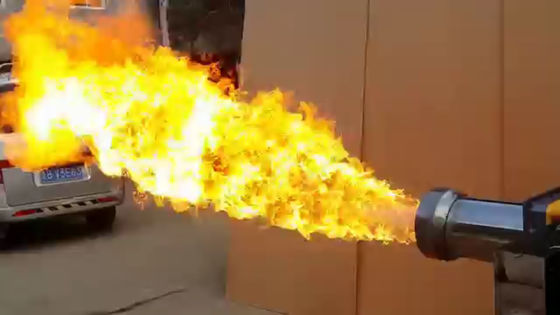

In use

High Power Diesel Oil Burner 160 Millimeter Tube Diameter One Year Warranty



special tips when use

  1. Our burner must work with one unit external air compressor.For kv90 model,we recommend to use 1.2-1.5cbm/min air compressor
  2. Keep the first gauge reading less than 1kg/cm2,the second one between 0.5-1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to clock the number.
  3. Oil pump will pump oil automatically,do not fill small tank by yourself.
  4. Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
  5. Please make sure no water in the fuel
  6. Do not touch the small oil tank,it can be very hot
  7. If you meet any trouble,please take a video for us,we will tell you how to manage.

Why choose KING VITAL burner



-Our burner is ture waste oil system,use pc board to control,not siemens controller

-Our burner is patented to be high efficient combustion

-test well before leave factory

-CE approval

-Environment friendly,own air pollution certificate issused by China Environmental Station

-Durable,no vulnerable parts,quality warranty for one year,spare parts for life time



About us



We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.

All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.

You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
