Poultry Farm Second Hand Waste Oil Burner 114 Mm Tube Diameter Long Life Span
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | KV10 Waste Oil Burner | Max Output Heat: | 100 000Kcal/h (400 000Btu/h) |
|---|---|---|---|
| Max Output Power: | 120kw | Oil Consumption: | 6-8l/h |
| Tube Diameter: | Standard 114mm | Fuel: | Waste Oil,used Oil,used Engine Oil,Soybean Oil |
| Application: | Boiler,furnace | Feature: | Can Be Used In Poultry Farm |
| High Light: | used motor oil burner,garage oil burner |
||
For Poultry Farm Kingwei Brand Various Used Oil Burner Buy From Direct Factory
Feature
KV10 is our hotsell star model,well proven.Can be used in poultry farm,house,school,office building,to heat boiler,provide hot water or steam.Low power consumption and low noise,stable flame,fully automatical,no nurse needed.
Parameter
| Model | KV10 |
| Max.output heat | 100,000Kcal/h (400,000Btu/h) |
| Output power | 80-120kw |
| Oil consumption | 6-8 liter/hour |
| Tube diameter | 114mm |
| Tube length | 135mm |
| Nozzle | siphon brass 1x2.0mm |
| Heating pipe | 1.0kw |
| Motor power | 180w |
| Working pressure | 8 bar(0.8mpa 116psi) |
| Power | 220v 50hz or 110v 60hz |
| Burner Size | 510x455x300mm |
| N.W | 25kg |
| Fuel | all kinds of waste oil,diesel oil |
| Application | 0.3t boiler,furnace,oven,heater,grain dryer |
| ✔Available fuel list | |||
| used engine oil/motor oil | used crankcase oil | used transmission oil | used hydraulic oil |
| used synthetic oil | waste machine shop cutting oil | used grades #1,#3,#4 heating oils | used mixed oil |
| used diesel oil | used cooking oil | used vegetable oil/animal fat oil | Soybean oil |
| diesel oil | waste car oil | used tyre/rubber pyrolysis oil | waste plastic oil........ |
| ✘gasoline,heavy oil,water | |||
used in chicken house
special tips when use

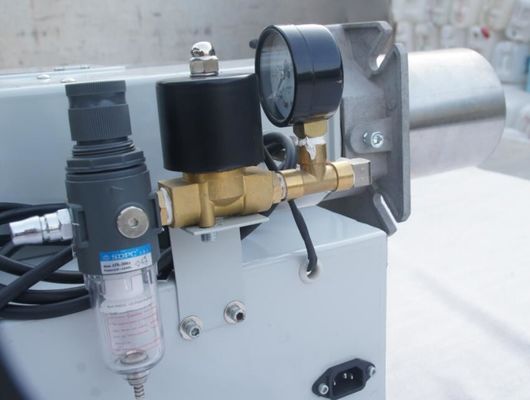

- Our burner must work with one unit external air compressor.For kv10 model,we recommend to use 0.3-0.5cbm/min air compressor
- Keep the gauge reading less than 1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to lock the number
- Oil pump will pump oil automatically,do not fill small tank by yourself.

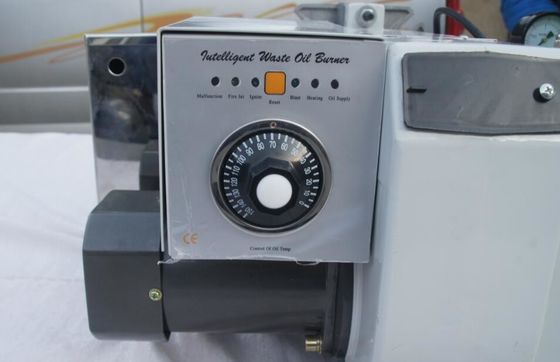

- Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
- Please make sure no water in the fuel
- Do not change original setting casually,such as air flap's position.
- Do not touch the small oil tank,it can be very hot
- If you meet any trouble,please take a video for us,we will tell you how to manage.
Why choose KING VITAL burner
-Our burner is patented to be high efficient combustion
-Our burner is ture waste oil system,use pc board to control,not siemens controller
-test well before leave factory,guarantee no smoke,efficient combustion
-CE approval
-Environment friendly,own air pollution certificate issused by China Environmental Station
-Durable,no vulnerable parts,quality warranty for one year
-Spare parts for life use
About us
We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.
All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.
You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
