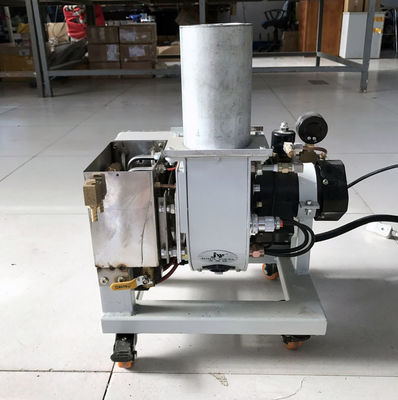

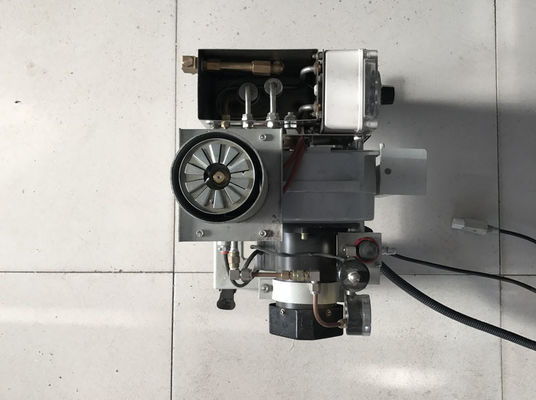

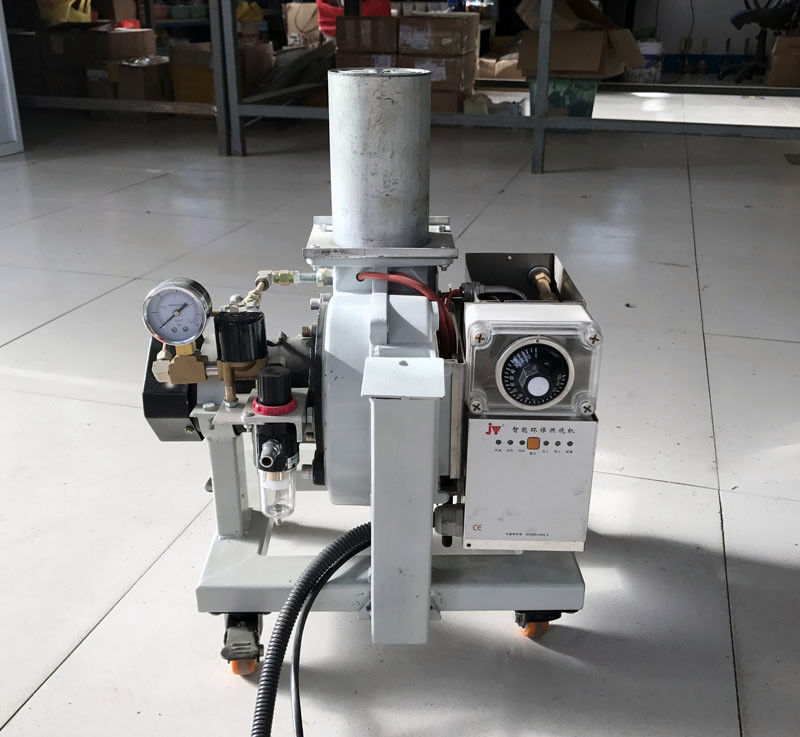

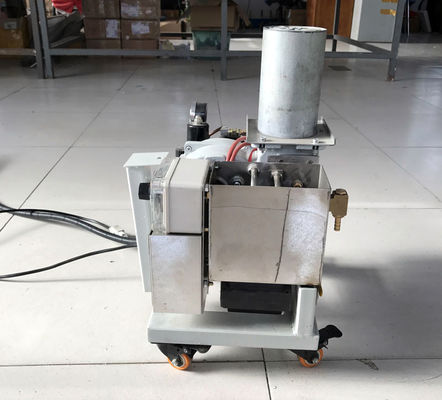

Portable Upward Smokeless Waste Oil Burner Pc Board Control Low Noise

China Portable Upward Smokeless Waste Oil Burner Pc Board Control Low Noise supplier
Portable Upward Smokeless Waste Oil Burner Pc Board Control Low Noise supplier Portable Upward Smokeless Waste Oil Burner Pc Board Control Low Noise supplier Portable Upward Smokeless Waste Oil Burner Pc Board Control Low Noise supplier Portable Upward Smokeless Waste Oil Burner Pc Board Control Low Noise supplier

Large Image :  Portable Upward Smokeless Waste Oil Burner Pc Board Control Low Noise

Product Details:

Place of Origin: CHINA
Brand Name: KING VITAL
Certification: CE
Model Number: KVU03

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: double carton box or plywood box with foam
Delivery Time: 15-30 days for one unit
Payment Terms: T/T,Visa,Master Card,Western Union
Supply Ability: 1000 unit per month
Detailed Product Description
Item: Upward Oil Fired Burner Max.output Heat: 30000Kcal/h
Output Power: 14-55kw Oil Consumption: 2-4 Liter Per Hour
Working Pressure: 8 Bar Fuel: Waste Oil,dirty Oil,used Oil,diesel Oil,clean Oil
Application: 0.1t Boiler,furnace,oven Etc Feature: New Product,test Well,face Upward
High Light:

used oil burner

,

oil fired boilers

14 - 55kw Upward Oil Fired Burner All Kinds Of Used Oil Dirty Oil Waste Oil



Feature



Upward waste oil burner is our new product,tested well,comply well with combustion chamber room,such as boiler,furnace,oven,air heater etc.Can burn all kinds of used oil,waste oil,dirty oil,clean oil,diesel oil completely and efficiently.



Parameter



Model KV03-U KV05-U KV10-U KV20-U KV30-U
Oil Consumption 2-3l/h 3-5l/h 6-8l/h 13-15l/h 15-21l/h
Output Power 14-55kw 30-60kw 80-120kw 150-200kw 210-270kw
Max.output heat 30000Kcal 50000Kcal 100 000Kcal 200 000Kcal 300 000Kcal
siphon brass nozzle 1x1.0mm 1x1.0mm 1x2.0mm 2x2.0mm 3x2.0mm
tube diameter 90mm 114mm
Application 0.1t boiler 0.1-0.2t boiler 0.3t boiler 0.4t boiler 0.5t boiler



Model KV40-U KV50-U KV60-U KV90-U
Oil consumption 30-40l/h 35-45l/h 40-60l/h 70-80l/h
Output Power 230-360kw 230-460kw 450-560kw 850-1000kw
Max.output heat 400 000Kcal 500 000Kcal 600 000Kcal 900 000Kcal
siphon brass nozzle 4x2.0mm 5x2.0mm 6x2.0mm 9x2.0mm
tube diameter 160mm
Application 0.6t boiler 0.8t boiler 1.0t boiler 1.5t boiler



Available fuel list
used engine oil/motor oil used crankcase oil used transmission oil used hydraulic oil
used synthetic oil waste machine shop cutting oil used grades #1,#3,#4 heating oils used mixed oil
used diesel oil used cooking oil used vegetable oil/animal fat oil Soybean oil
diesel oil waste car oil used tyre/rubber pyrolysis oil waste plastic oil........
✘gasoline,heavy oil,water



fire test

Portable Upward Smokeless Waste Oil Burner Pc Board Control Low Noise



special tips when use



  • Our burner must work with one unit external air compressor.
  • Keep the first gauge reading less than 1kg/cm2,the second one between 0.5-1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to clock the number.
  • Oil pump will pump oil automatically,do not fill small tank by yourself.
  • Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
  • Please make sure no water in the fuel
  • Do not change original setting casually,such as air flap's position.
  • Do not touch the small oil tank,it can be very hot
  • If you meet any trouble,please take a video for us,we will tell you how to manage.



Why choose KING VITAL burner



     -Our burner is ture waste oil system,use pc board to control,not siemens controller

     -Our burner is patented to be high efficient combustion

     -test well before leave factory

     -CE approval

     -Environment friendly,own air pollution certificate issused by China Environmental Station

     -Durable,no vulnerable parts,quality warranty for one year,spare parts for life time



About us



We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.

All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.

You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
