Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator

Certification
Good quality Waste Motor Oil Burner for sales
Good quality Waste Motor Oil Burner for sales
the burner very very good,work good and save alot of money

—— Malkof

The burner that i bought from you is excellent

—— Jessie

the kv-10 unit works super at the first week.I heat 400m2 with it

—— David

today I found three customers they are ready to buy with no hestiate

—— Yasser

we bought last year,now we need more

—— Jay

I'm Online Chat Now

Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator

China Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator supplier
Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator supplier Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator supplier Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator supplier Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator supplier

Large Image :  Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator

Product Details:

Place of Origin: CHINA
Brand Name: KING VITAL
Certification: CE
Model Number: KV5000

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: plywood box with foam for sea ship.package size:200x100x140cm(2.8cbm) G.W: 300kg
Delivery Time: 20 days
Payment Terms: T/T, Western Union,visa,master card
Supply Ability: 1000 unit per month
Detailed Product Description
Item: Hot Air Generator Fuel: Waste Oil,used Oil,dirty Oil,diesel Oil Etc
Oil Consumption: 6-8l/h Output Power: 80-120kw
Max.output Heat: 100000Kcal/h (400000Btu/h) Working Pressure: 8bar
Application: Poultry Farm,greenhouse,workshop,tent Feature: Easy Operation,intelligent
High Light:

oil burning heater

,

recycled oil heater

2 Duct Husbandry Portable Hot Air Generator Easy Operation Waste Oil Diesel Oil



Feature



  • KVH5000 has three safe precaution,malfunction readable.
  • Brand new 304 stainless stell combustion chamber inside,high efficiently and durable
  • 100L oil tank inside,oil pump&filter system are installed well,open to use
  • Least maintain work is needed



Parameter



Model KVH5000
Heating spply area around 800-1000sq.m
Max.output heat 100,000Kcal/h (400,000Btu/h)
Output power 80-120kw
Oil consumption 6-8 liter/hour
Heating exchanger stainless steel combustion chamber
Draught fan system one 600mm(dia) YWF
Fan motor 0.88kw
Air output 12000m3/h
Air output exit 2x250mm(dia)
Chimney diameter 140mm
Working pressure 8 bar(0.8mpa 116psi)
Power 220v 50hz or 110v 60hz
Size 1850x900x1270mm
G.W 300kg
Fuel all kinds of waste oil,diesel oil
Application chicken house,poultry farm,workshop etc



Available fuel list
used engine oil/motor oil used crankcase oil used transmission oil used hydraulic oil
used synthetic oil waste machine shop cutting oil used grades #1,#3,#4 heating oils used mixed oil
used diesel oil used cooking oil used vegetable oil/animal fat oil Soybean oil
diesel oil waste car oil used tyre/rubber pyrolysis oil waste plastic oil........
✘gasoline,heavy oil,water



showcase

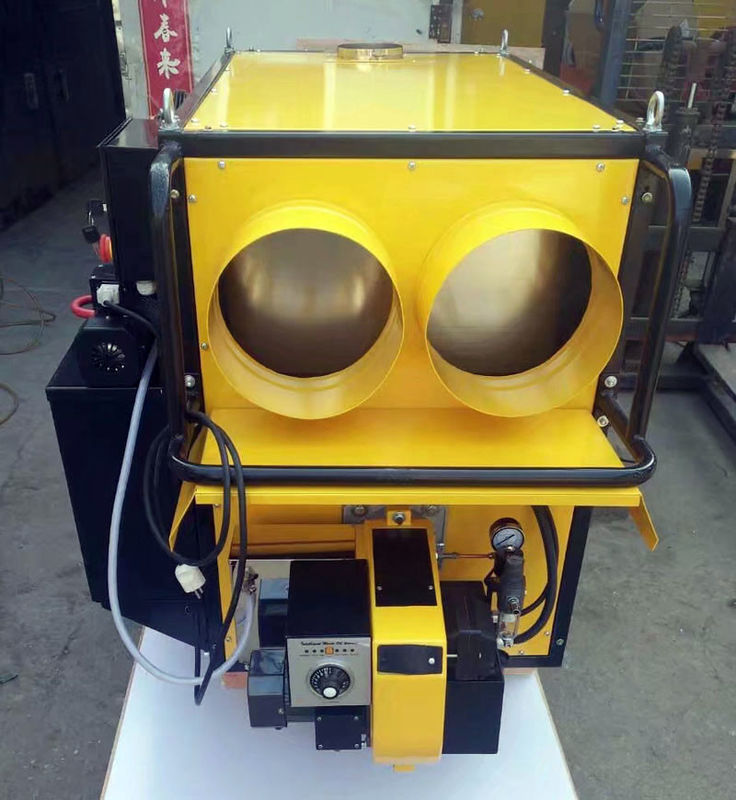

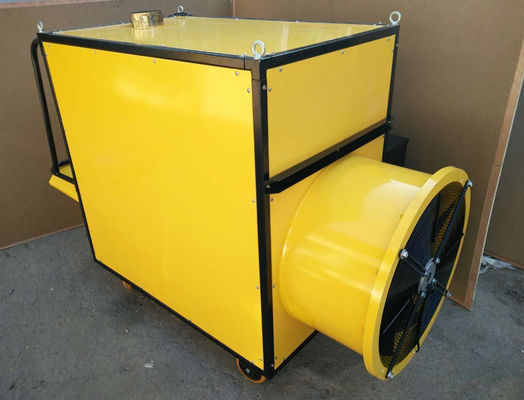

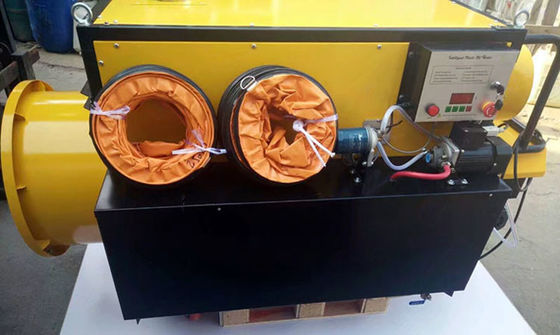

Intelligent Used Oil Burner Heater , 2 Duct Husbandry Hot Air Generator



special tips when use



  • Our burner must work with one unit external air compressor.For kvh5000 model,we recommend to use 0.3-0.5cbm/min air compressor
  • Keep the gauge reading less than 1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to clock the number.
  • Oil pump will pump oil automatically,do not fill small tank by yourself.
  • Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
  • Please make sure no water in the fuel
  • Do not change original setting casually,such as air flap's position.
  • Do not touch the small oil tank,it can be very hot
  • If you meet any trouble,please take a video for us,we will tell you how to manage.



Why choose KING VITAL heater



     -Our heater is ture waste oil system,use pc board to control,not siemens controller

     -Our heater is patented to be high efficient combustion

     -test well before leave factory

     -CE approval

     -Environment friendly,own air pollution certificate issused by China Environmental Station

     -Durable,no vulnerable parts,quality warranty for one year,spare parts for life time



About us



We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.

All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.

You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
