400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area

Certification
Good quality Waste Motor Oil Burner for sales
Good quality Waste Motor Oil Burner for sales
the burner very very good,work good and save alot of money

—— Malkof

The burner that i bought from you is excellent

—— Jessie

the kv-10 unit works super at the first week.I heat 400m2 with it

—— David

today I found three customers they are ready to buy with no hestiate

—— Yasser

we bought last year,now we need more

—— Jay

I'm Online Chat Now

400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area

China 400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area supplier
400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area supplier 400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area supplier 400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area supplier 400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area supplier

Large Image :  400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area

Product Details:

Place of Origin: CHINA
Brand Name: KING VITAL
Certification: CE
Model Number: KV6000

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: plywood box with foam for sea ship.package size:202x102x157cm(3.3cbm) G.W:375kg
Delivery Time: 30 days
Payment Terms: T/T, Western Union,visa,master card
Supply Ability: 1000 unit per month
Contact Now
Detailed Product Description
Item: Poultry Brooder Heater Fuel: Waste Oil,used Oil,dirty Oil,diesel Oil
Oil Consumption: 6-8 Liter Per Hour Output Power: 80-120kw
Max.output Heat: 400000Btu/h (100000kcal/h) Working Pressure: 8 Bar
Application: Heating,warm Engine,melting Snow Feature: Four Independent Warm Air Outlet

4 Poultry Room Use KVH6000 Poultry Brooder Heater Waste Oil Heater 80 - 120kw



Feature



  • KVH6000 has two fan motor,blow warm air fast and efficiently
  • use 80-120kw waste oil burner,consumes less oil,achieve the same heat effect.
  • Burner's fire directly to sealed chamber,safe to use.
  • no smell,no somke,completely safe to use



Parameter



Model KVH6000
Heating spply area around 1000-1200sq.m
Max.output heat 100,000Kcal/h (400,000Btu/h)
Output power 80-120kw
Oil consumption 6-8 liter/hour
Heating exchanger stainless steel combustion chamber
Draught fan system one 600mm(dia) YWF+one 300mm(dia) YWF
fan motor 880w+115w
Air output 12000m3/h+1800m3/h
Air output exit 4x300(dia)
chimney diameter 140mm
Working pressure 8 bar (0.8mpa 116psi)
Power 220v 50hz or 110v 60hz
Size 2000x980x1380mm
G.W 375kg
Fuel all kinds of waste oil,diesel oil
Application cold area,poultry farm,factory etc



Available fuel list
used engine oil/motor oil used crankcase oil used transmission oil used hydraulic oil
used synthetic oil waste machine shop cutting oil used grades #1,#3,#4 heating oils used mixed oil
used diesel oil used cooking oil used vegetable oil/animal fat oil Soybean oil
diesel oil waste car oil used tyre/rubber pyrolysis oil waste plastic oil........
✘gasoline,heavy oil,water



odm/oem test

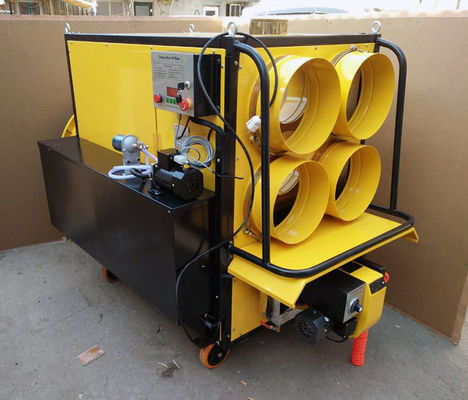

400000 Btu / H Output Waste Oil Burning Heater 1000 - 1200 Sqm Heating Area



special tips when use

  1. Our burner must work with one unit external air compressor.For kvh6000 model,we recommend to use 0.3-0.5cbm/min air compressor
  2. Keep the gauge reading less than 1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to clock the number.
  3. Oil pump will pump oil automatically,do not fill small tank by yourself.
  4. Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
  5. Please make sure no water in the fuel
  6. Do not change original setting casually,such as air flap's position.
  7. Do not touch the small oil tank,it can be very hot
  8. If you meet any trouble,please take a video for us,we will tell you how to manage.



Why choose KING VITAL heater



     -Our heater is ture waste oil system,use pc board to control,not siemens controller

     -Our heater is patented to be high efficient combustion

     -test well before leave factory

     -CE approval

     -Environment friendly,own air pollution certificate issused by China Environmental Station

     -Durable,no vulnerable parts,quality warranty for one year,spare parts for life time



About us



We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.

All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.

You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
