KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation

Certification
Good quality Waste Motor Oil Burner for sales
Good quality Waste Motor Oil Burner for sales
the burner very very good,work good and save alot of money

—— Malkof

The burner that i bought from you is excellent

—— Jessie

the kv-10 unit works super at the first week.I heat 400m2 with it

—— David

today I found three customers they are ready to buy with no hestiate

—— Yasser

we bought last year,now we need more

—— Jay

I'm Online Chat Now

KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation

China KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation supplier
KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation supplier KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation supplier KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation supplier KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation supplier

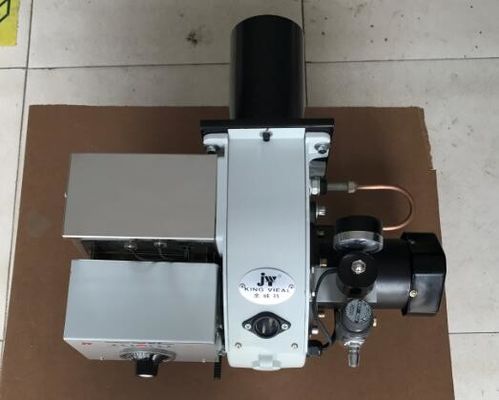

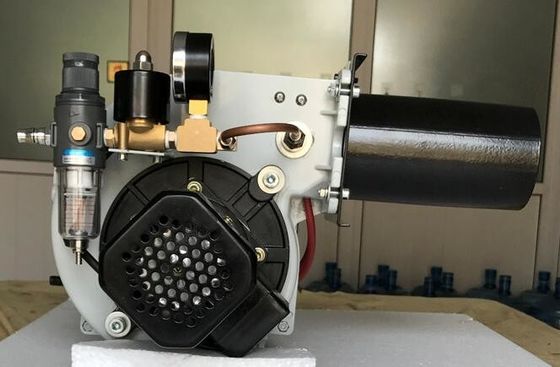

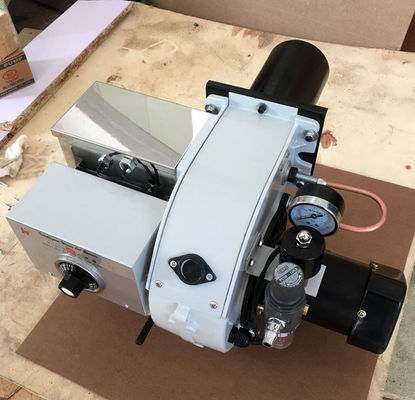

Large Image :  KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation

Product Details:

Place of Origin: CHINA
Brand Name: KING VITAL
Certification: CE
Model Number: KV03

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: one unit:double carton box with foam for express to door.package size:58x53x42cm.G.W:25kg
Delivery Time: 7 days
Payment Terms: Western Union, T/T,Visa,Master Card
Supply Ability: 1000 unit per month
Contact Now
Detailed Product Description
Product Name: Industrial Oil Fired Burner Fuel: All Kinds Of Waste Oil,dirty Oil,used Oil,clean Oil
Output Power: 14-55kw Oil Consumption: 2-4 Liter Per Hour
Max.output Heat: 30000Kcal Nozzle: Siphon Brass 1x1.0mm

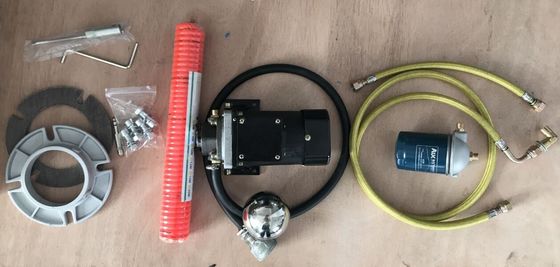

Application: 0.1t Boiler,furnace,air Heater Etc Package List: Whole Oil Pump&filter System,extra Spare Parts Are In The Parcel

Industrial Grade 14 - 55kw Oil Fired Burner KV03 Of Waste Oil Used Oil



Feature



  • KV03 a mini model,light,economic,intact,tube diameter is 90mm
  • multi usage,for boiler,furnace,oven,air heater,dryer etc
  • heating temperature adjustable designed for different type of fuel
  • automatically ignite,malfunction readable



Parameter



Model KV03
Max.output heat 30,000Kcal/h (120,000Btu/h)
Output power 14-55kw
Oil consumption 2-4 liter/hour
Tube diameter 90mm
Tube length 130mm
Nozzle siphon brass 1x1.0mm
Heating pipe 1.0kw
Motor power 180w
Working pressure 8 bar(0.8mpa 116psi)
Power 220v 50hz or 110v 60hz
Burner Size(LxWxH) 430x450x290mm
N.W 20kg
Fuel all kinds of waste oil,diesel oil
Application 0.1t boiler,furnace,oven,heater,grain dryer etc



Available fuel list
used engine oil/motor oil used crankcase oil used transmission oil used hydraulic oil
used synthetic oil waste machine shop cutting oil used grades #1,#3,#4 heating oils used mixed oil
used diesel oil used cooking oil used vegetable oil/animal fat oil Soybean oil
diesel oil waste car oil used tyre/rubber pyrolysis oil waste plastic oil........
✘gasoline,heavy oil,water



kv03 fire test

KV 03 Industrial Waste Oil Burners , 14-55 Kw Used Oil Burner Easy Operation



Why choose KING VITAL burner



  • Our burner is ture waste oil system,use pc board to control,not siemens controller
  • Our burner is patented to be high efficient combustion
  • test well before leave factory
  • CE approval
  • Environment friendly,own air pollution certificate issused by China Environmental Station
  • Durable,no vulnerable parts,quality warranty for one year,spare parts for life time



Special tips when use



  • Our burner must work with one unit external air compressor.For kv03 model,we recommend to use 0.3-0.5cbm/min air compressor
  • Oil pump will pump oil automatically,do not fill small tank by yourself.
  • Keep the gauge reading less than 1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to lock the number
  • Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
  • Please make sure no water in the fuel or water content is less than 5%
  • Do not change original setting casually,such as distance between ignitors and flame ring
  • Do not touch the small oil tank,it can be very hot
  • If you meet any trouble,please take a video for us,we will tell you how to manage.



About us



We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.

All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.

You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
