200 Kw Waste Vegetable Oil Burner , Animal Fat Dirty Oil Burner Easy Use

Certification
Good quality Waste Motor Oil Burner for sales
Good quality Waste Motor Oil Burner for sales
the burner very very good,work good and save alot of money

—— Malkof

The burner that i bought from you is excellent

—— Jessie

the kv-10 unit works super at the first week.I heat 400m2 with it

—— David

today I found three customers they are ready to buy with no hestiate

—— Yasser

we bought last year,now we need more

—— Jay

I'm Online Chat Now

200 Kw Waste Vegetable Oil Burner , Animal Fat Dirty Oil Burner Easy Use

China 200 Kw Waste Vegetable Oil Burner , Animal Fat Dirty Oil Burner Easy Use supplier

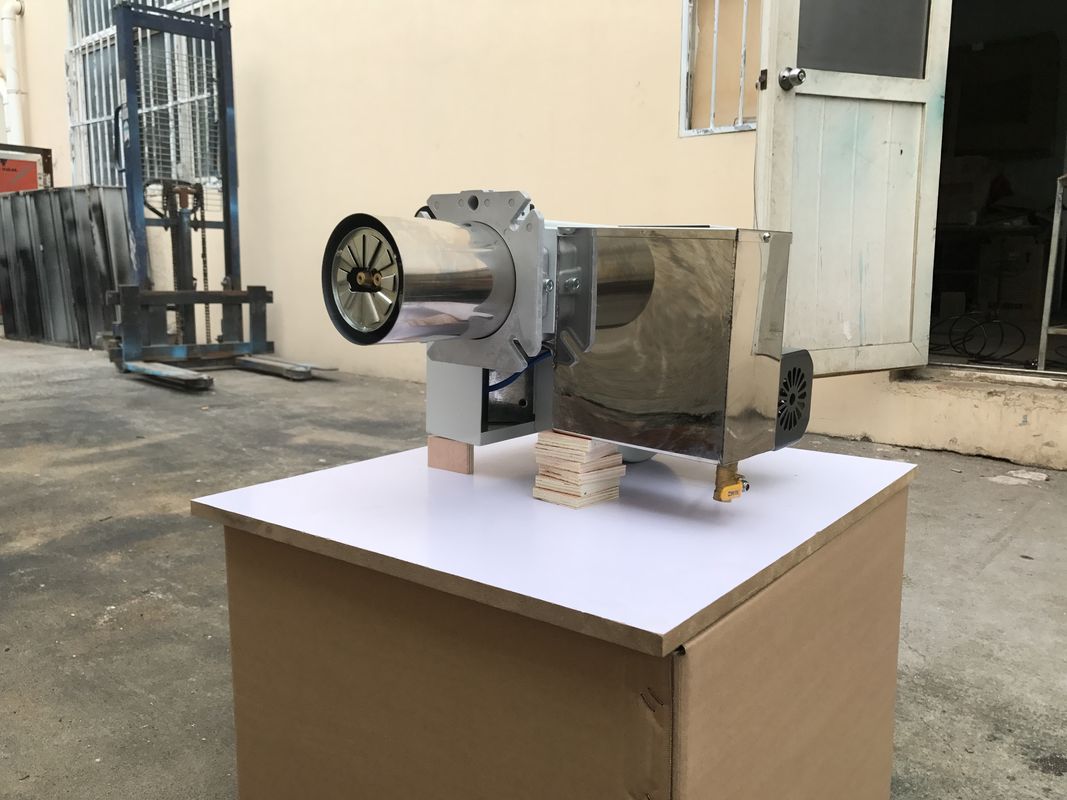

Large Image :  200 Kw Waste Vegetable Oil Burner , Animal Fat Dirty Oil Burner Easy Use

Product Details:

Place of Origin: CHINA
Brand Name: KING VITAL
Certification: CE
Model Number: KV20

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: one unit:double carton box with foam for express to door.package size:58x53x42cm.G.W:25kg
Delivery Time: 7 days for one unit
Payment Terms: Western Union, T/T,Visa,Master Card
Supply Ability: 1000 unit per month
Contact Now
Detailed Product Description
Product Name: Dirty Oil Burner Max.output Heat: 200 000Kcal/h (800 000Btu/h)
Output Power: 150-200kw Oil Consumption: 13-15liter Per Hour
Tube Diameter: Standard 114mm Fuel: All Kinds Of Waste Oil,dirty Oil,diesel Oil
Application: 0.4t Boiler,furnace,heater,grain Dryer Etc Feature: So Smoke,true Waste Oil System





200Kw Animal Fat Dirty Oil Burner Vegetable Oil Available With CE Approval



Feature



  • KV20 has two siphon brass nozzle,high sensitive flame detector,programmed pc board
  • oil level controllable,burner stop automatically when malfunction happens
  • malfunction readable,easy to troubleshoot
  • no vulnerable parts,durable,quality warranty for one year,spare parts for life time
  • easy use,easy maintainance



Parameter



Model KV20
Max.output heat 200,000Kcal/h (800,000Btu/h)
Output power 150-200kw
Oil consumption 12-15 liter/hour
Tube diameter 114mm
Tube length 135mm
Nozzle siphon brass 2x2.0mm
Heating pipe 1.0kw
Motor power 180w
Working pressure

8 bar (0.8mpa 116psi)

Power 220v 50hz or 110v 60hz
Size 510x455x300mm
N.W 25kg
Fuel all kinds of waste oil,diesel oil
Application 0.4t boiler,furnace,oven,heater,grain dryer



Available fuel list
used engine oil/motor oil used crankcase oil used transmission oil used hydraulic oil
used synthetic oil waste machine shop cutting oil used grades #1,#3,#4 heating oils used mixed oil
used diesel oil used cooking oil used vegetable oil/animal fat oil Soybean oil
diesel oil waste car oil used tyre/rubber pyrolysis oil waste plastic oil........
contaminated/polluted oil liquid residual oil sewage/sump oil corrupt/dirty oil
✘gasoline,heavy oil,water



fire test

200 Kw Waste Vegetable Oil Burner , Animal Fat Dirty Oil Burner Easy Use



Advantage

  1. flame length adjustable
  2. Whole oil pump&filter system,air pipe,power line,extra photo cell,float ball,simple tools are included
  3. six indicator light&one reset button
  4. heating temperature adjustable designed for different type of fuel



Why choose KING VITAL burner



     -Our burner is ture waste oil system,use pc board to control,not siemens controller

     -Our burner is patented to be high efficient combustion

     -test well before leave factory

     -CE approval

     -Environment friendly,own air pollution certificate issused by China Environmental Station

     -Durable,no vulnerable parts,quality warranty for one year,spare parts for life time



About us



We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.

All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.

You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
