1200000 Btu / H Waste Oil Drip Burner Three Safe Protection CE Certification
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Waste Oil Drip Burner | Max.output Heat: | 300000Kcal/h(12,00,000Btu/h) |
|---|---|---|---|
| Output Power: | 210-270kw | Oil Consumption: | 15-21 Liter Per Hour |
| Working Pressure: | 8 Bar | Fuel: | All Kinds Of Waste Oil,used Oil,clean Oil Etc |
| Application: | 0.5t Boiler,furnace,oven,dryer Etc | Quality Warranty: | One Year |
| High Light: | drip feed waste oil burner,motor oil burning furnace |
||

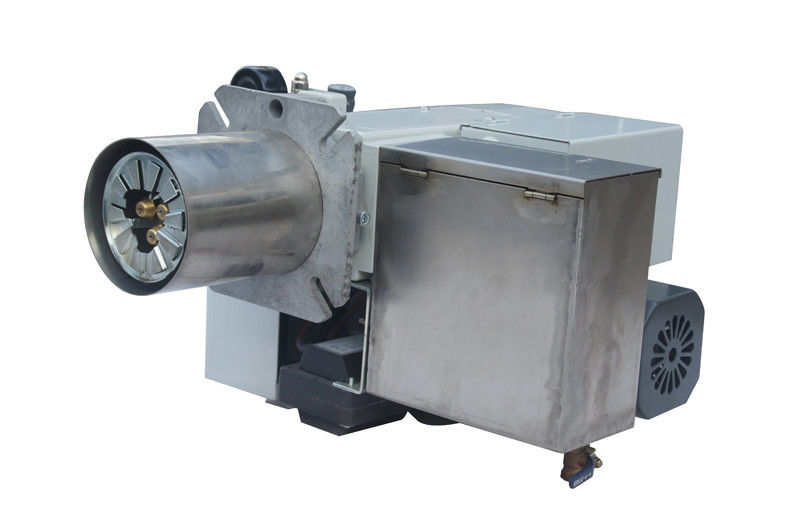

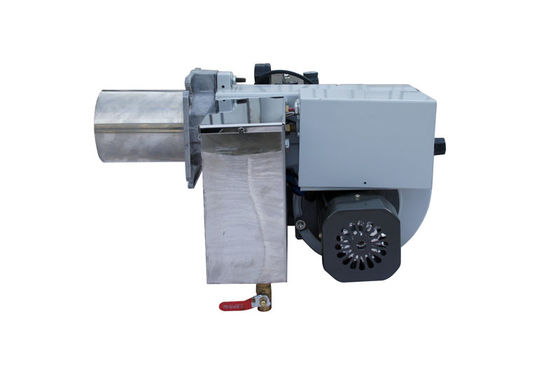

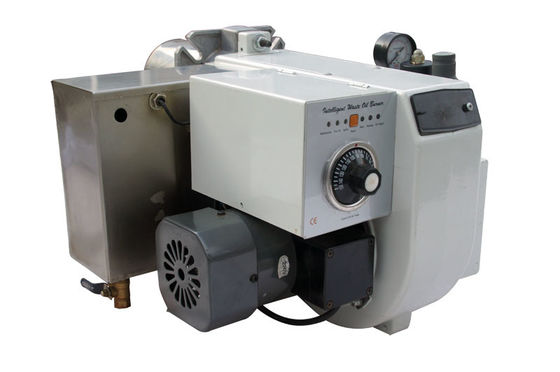

KV30 300000Kcal CE Approval Waste Oil Drip Burner With Three Special Nozzle
Feature
- KV30 has three customized siphon brass nozzle,casted fire ring,form a strong stable flame column,efficient combustion,no smoke
- Three safe protection,stop the burner when malfunction happens
- The parcel has the whole oil pump&filter system etc
- Fast delivery,moq is one unit,quality guarantee for one year,spare parts and tech support for life time
Parameter
| Model | KV30 |
| Max.output heat | 300,000Kcal/h (12,00,000Btu/h) |
| Output power | 210-270kw |
| Oil consumption | 15-21 liter/hour |
| Tube diameter | 114mm |
| Tube length | 135mm |
| Heating pipe | 1.0kw |
| Motor power | 180w |
| Nozzle | siphon brass 3x2.0mm |
| Working pressure | 8 bar |
| Power | 220v 50hz or 110v 60hz |
| Size | 510x455x300mm |
| N.W | 26kg |
| Fuel | all kinds of waste oil,diesel oil |
| Application | 0.5t boiler,furnace,oven,heater,grain dryer |
| ✔Available fuel list | |||
| used engine oil/motor oil | used crankcase oil | used transmission oil | used hydraulic oil |
| used synthetic oil | waste machine shop cutting oil | used grades #1,#3,#4 heating oils | used mixed oil |
| used diesel oil | used cooking oil | used vegetable oil/animal fat oil | Soybean oil |
| diesel oil | waste car oil | used tyre/rubber pyrolysis oil | waste plastic oil........ |
| ✘gasoline,heavy oil,water | |||
kv30 fire test
special tips when use
- Our burner must work with one unit external air compressor.For kv30 model,we recommend to use 0.3-0.5cbm/min air compressor
- Keep the gauge reading less than 1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to lock the number
- Oil pump will pump oil automatically,do not fill small tank by yourself.
- Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
- Please make sure no water in the fuel
- Do not change original setting casually,such as air flap's position,distance between ignitors and flame ring.
- Do not touch the small oil tank,it can be very hot
- If you meet any trouble,please take a video for us,we will tell you how to manage.
Why choose KING VITAL burner
- Our burner is ture waste oil system,use pc board to control,not siemens controller
- Our burner is patented to be high efficient combustion
- test well before leave factory
- CE approval
- Environment friendly,own air pollution certificate issused by China Environmental Station
- Durable,no vulnerable parts,quality warranty for one year,spare parts for life time
About us
We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.
All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.
You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
