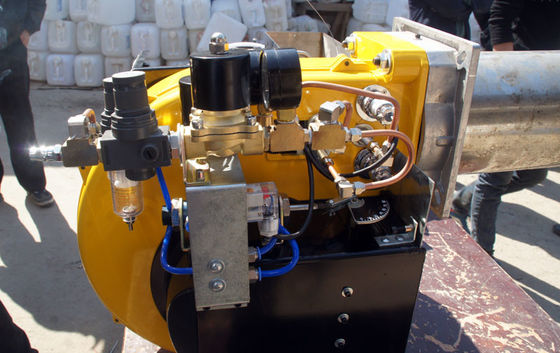

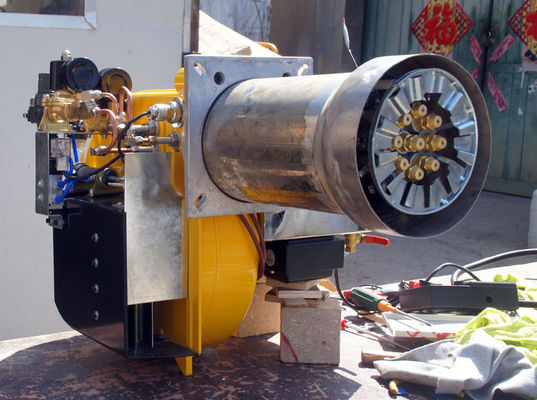

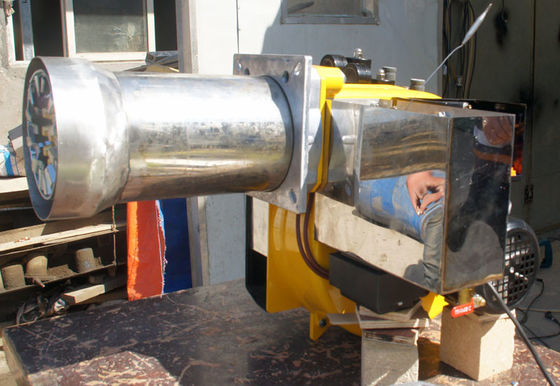

1000kw 900000Kcal Waste Oil Recycled Oil Burner KV90 With Three Flame Stage
Feature
KV90 is a big power burner,three fire stage,reach max 1000kw 900 000Kcal.Durable,no vulnerable parts.Smart,fully automatic.Multi fuel can be used,such as waste oil from car,engine,motor,used oil from cooking,kitchen,tyre etc,animal fat oil,vegetable oil,Soybean oil etc
Parameter
| Model |
KV90 |
| Max.output heat |
900,000Kcal/h (36,00,000Btu/h) |
| Output power |
850-1000kw |
| Oil consumption |
70-80 liter/hour |
| Tube diameter |
160mm |
| Nozzle |
siphon brass 9x2.0mm |
| Heatng pipe |
2.0kw |
| Motor power |
1.0kw |
| Working pressure |
8 bar |
| Power |
220v 50hz |
| Size |
750x590x600mm |
| N.W |
75kg |
| Fuel |
all kinds of waste oil,diesel oil |
| Application |
1.5t boiler,furnace,oven,grain dryer |
| ✔Available fuel list |
| used engine oil/motor oil |
used crankcase oil |
used transmission oil |
used hydraulic oil |
| used synthetic oil |
waste machine shop cutting oil |
used grades #1,#3,#4 heating oils |
used mixed oil |
| used diesel oil |
used cooking oil |
used vegetable oil/animal fat oil |
Soybean oil |
| diesel oil |
waste car oil |
used tyre/rubber pyrolysis oil |
waste plastic oil........ |
| ✘gasoline,heavy oil,water |

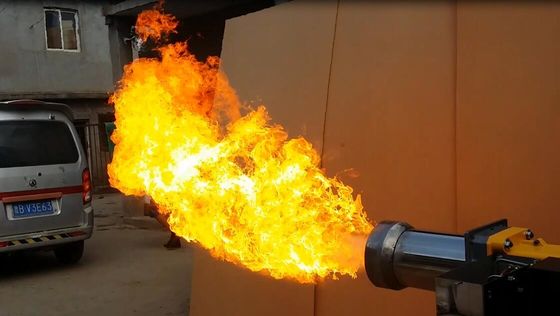

Fire test
special tips when use
- Our burner must work with one unit external air compressor.For kv90 model,we recommend to use 1.2-1.5cbm/min air compressor
- Keep the first gauge reading less than 1kg/cm2,the second one between 0.5-1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to clock the number.
- Oil pump will pump oil automatically,do not fill small tank by yourself.
- Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
- Please make sure no water in the fuel
- Do not touch the small oil tank,it can be very hot
- If you meet any trouble,please take a video for us,we will tell you how to manage.
Why choose KING VITAL burner
-Our burner is ture waste oil system,use pc board to control,not siemens controller
-Our burner is patented to be high efficient combustion
-test well before leave factory
-CE approval
-Environment friendly,own air pollution certificate issused by China Environmental Station
-Durable,no vulnerable parts,quality warranty for one year,spare parts for life time
