1.5 Ton Boiler Garage Waste Oil Burner Three Flame Stage Easy Maintain
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item: | Garage Waste Oil Burner | Max.output Heat: | 900 000Kcal/h |
|---|---|---|---|
| Output Power: | 850-1000kw | Oil Consumption: | 70-80l/h |
| Tube Diameter: | 160mm | Fuel: | All Kinds Of Waste Oil,used Oil,dirty Oil,clean Oil |
| Application: | Boiler,furnace,oven Etc | Feature: | Three Flame Stage |
| High Light: | used motor oil burner,garage oil burner |
||

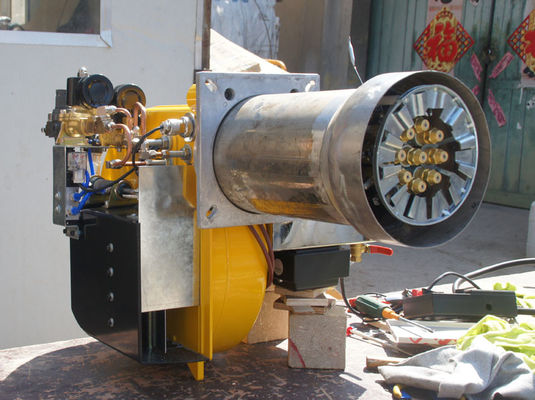

Kingwei Brand KV90 1000kw Garage Waste Oil Burner For 1.5T Boiler
Feature

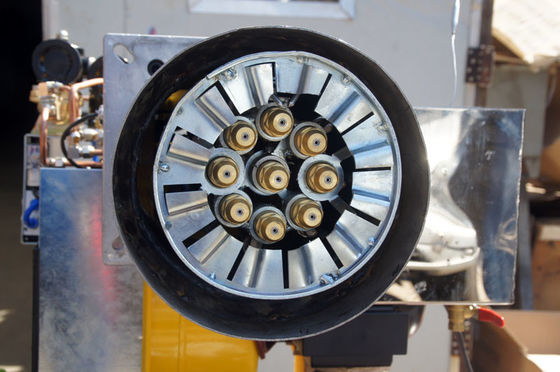

- KV90 is a big power model,has nine customized nozzle,mix well with compressed air,form stable strong flame column.No smoke,efficient complete combustion
- Two durable photo cell inside to detect light sensitively
- Flame length/oil temperature can be further regulated
Parameter
| Model | KV90 |
| Max.output heat | 900,000Kcal/h (36,00,000Btu/h) |
| Output power | 850-1000kw |
| Oil consumption | 70-80 liter/hour |
| Tube diameter | 160mm |
| Nozzle | siphon brass 9x2.0mm |
| Heatng pipe | 2.0kw |
| Motor power | 1.0kw |
| Working pressure | 8 bar |
| Power | 220v 50hz |
| Size | 750x590x600mm |
| N.W | 75kg |
| Fuel | all kinds of waste oil,diesel oil |
| Application | 1.5t boiler,furnace,oven,grain dryer |
| ✔Available fuel list | |||
| used engine oil/motor oil | used crankcase oil | used transmission oil | used hydraulic oil |
| used synthetic oil | waste machine shop cutting oil | used grades #1,#3,#4 heating oils | used mixed oil |
| used diesel oil | used cooking oil | used vegetable oil/animal fat oil | Soybean oil |
| diesel oil | waste car oil | used tyre/rubber pyrolysis oil | waste plastic oil........ |
| ✘gasoline,heavy oil,water | |||

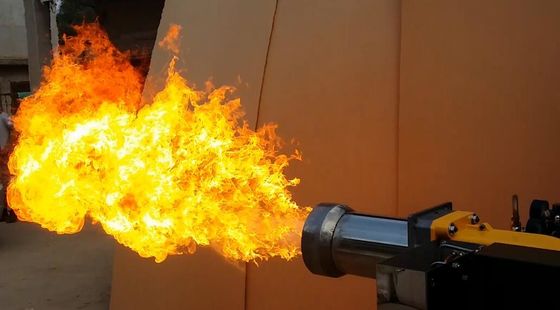

Fire test
special tips when use
- Our burner must work with one unit external air compressor.For kv90 model,we recommend to use 1.2-1.5cbm/min air compressor
- Keep the first gauge reading less than 1kg/cm2,the second one between 0.5-1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to clock the number.
- Oil pump will pump oil automatically,do not fill small tank by yourself.
- Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
- Please make sure no water in the fuel
- Do not touch the small oil tank,it can be very hot
- If you meet any trouble,please take a video for us,we will tell you how to manage.
Why choose KING VITAL burner
-Our burner is ture waste oil system,use pc board to control,not siemens controller
-Our burner is patented to be high efficient combustion
-test well before leave factory
-CE approval
-Environment friendly,own air pollution certificate issused by China Environmental Station
-Durable,no vulnerable parts,quality warranty for one year,spare parts for life time
About us
We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.
All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.
You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
