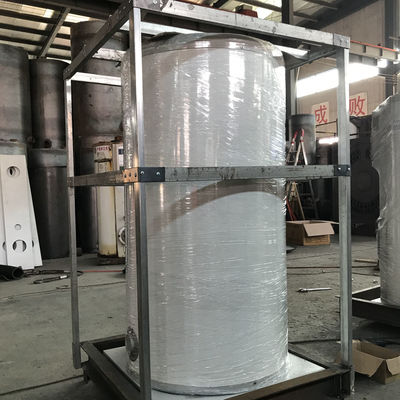

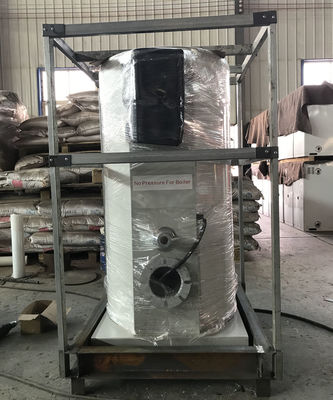

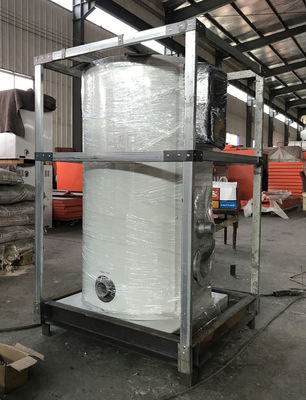

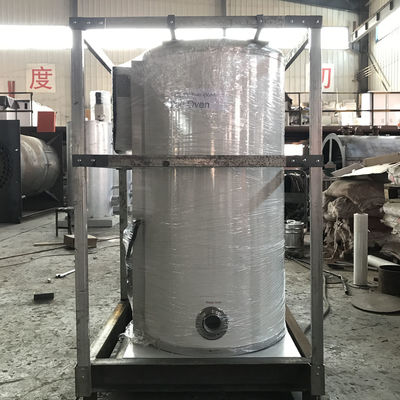

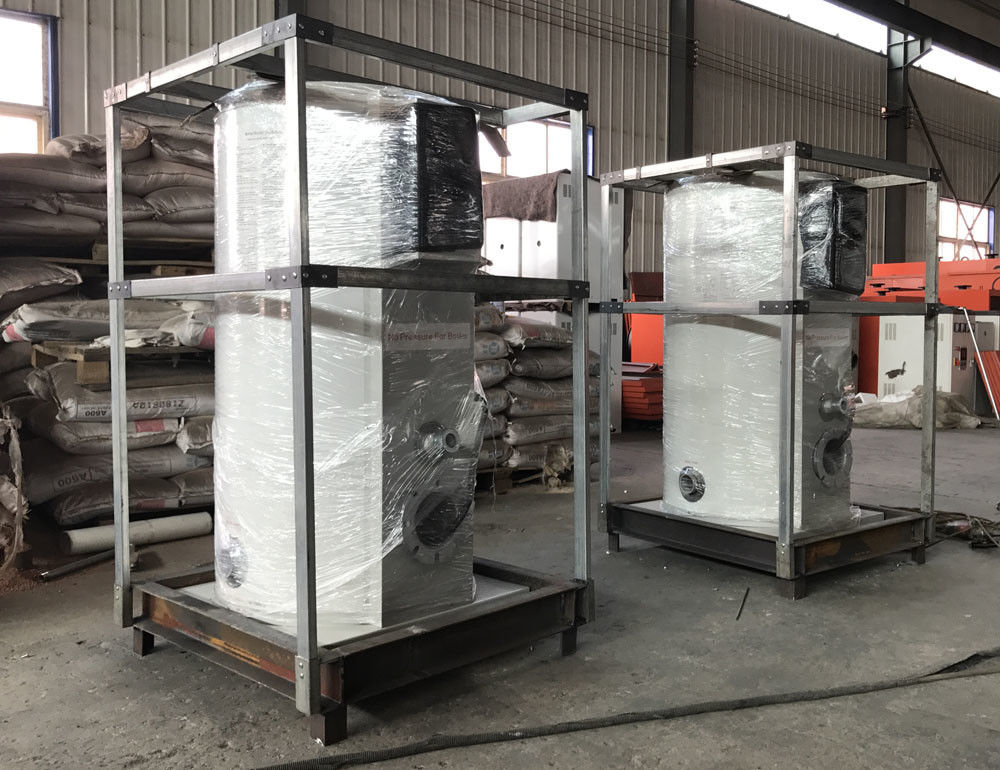

Dual Vertical Water Boiler With Stainless Steel Liner For Swimming And Heating
- In this plan,we use one dual water boiler,one burner to supply hot water for swimming pool and heating floor,radiator etc at the same time.Swimming pool's used water doesn't circulate with boiler.This design also applies for baby&child bath.
- Boiler sketch
- Package List(one water boiler,one waste oil burner)
| Model |
KVB400 |
KVB 500 |
KVB 700 |
KVB 1000 |
KVB 1500 |
KVB 2000 |
KVB 3000 |
| Heating area(sq.m) |
230 |
330 |
500 |
800 |
1000 |
1500 |
2000 |
| Output power(MW/h) |
0.047 |
0.06 |
0.08 |
0.12 |
0.17 |
0.23 |
0.35 |
| Output heat(Kcal/h) |
40,
000
|
50,
000
|
70,
000
|
100,
000
|
150,
000
|
200,
000
|
300,
000
|
| Chimney Dia(mm) |
100 |
200 |
200 |
200 |
200 |
300 |
300 |
| Exit/inlet Dia(mm) |
32 |
50 |
50 |
65 |
65 |
65 |
80 |
| Heat efficiency(%) |
85 |
85 |
85 |
85 |
86 |
86 |
86 |
|
Working pressure(mpa)
|
Normal pressure
|
|
Fuel Consumption
Oil (kg/)
|
3-5 |
5 |
5-7 |
7-10 |
10-15 |
15-20 |
25-30 |
| Size (L*W*H,mm) |
500
500
1120
|
685
620
1300
|
685
620
1350
|
800
740
1560
|
875
800
1700
|
1120
1000
1700
|
1130
1000
1930
|
| Water capacity(L) |
80 |
110 |
126 |
180 |
250 |
440 |
570 |
| N.W (kg) |
180 |
238 |
268 |
420 |
480 |
600 |
780 |
1.various application,small water boiler is very popular for personal property&business,such as villa,detached house,farm,factory,swimming pool etc
2.porous baffle inside fire tube,high efficiency,produce hot water fast&huge.
3.Low power consumption,no pollution.
4.Easy to use,fully automatic.
Set the water temperature,the whole boiler unit,including burner,water pump will work/stop automatically.Power off automatically if any malfunction happens.
5.Easy installation&maintenance
6.Vertical,intact,smaller area occupied.
We provide Carbon steel,galvanized or stainless steel liner,apply for different heating occasions.
-Carbon steel liner is economic,good for heating floor,radiator,fan coil etc
-Galvanized liner is clean,no rusty water,good for both heating and supply daily use hot water.
-Stainless steel liner provides high quality water,good for shower,swimming pool,baby&child bath etc
-Dual boiler,heating and use hot water at the same time!
-Boiler with plate heat exchanger,the same effect as dual boiler!
Small Boiler Option
1.machine tool area,to cut,weld
2.fix,test and complete boiler liner(Galvanized liner)
3.assemble,wiring,test wtih water injection
4.quality warranty with adequate supply
