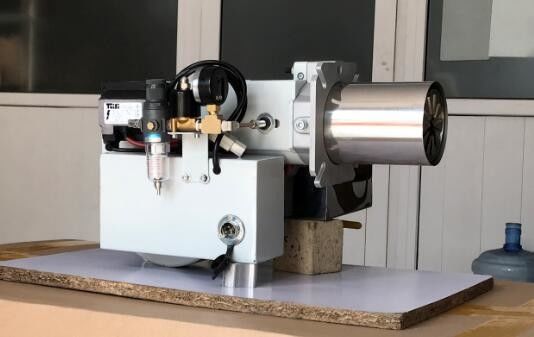

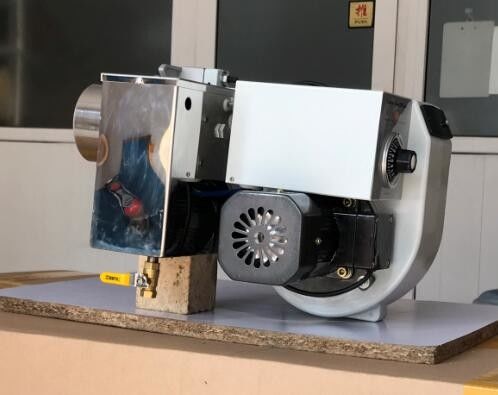

Malfunction Readable KV30 15 - 21Liter per hour Waste Motor Oil Burner
Feature
KV30 is tested well before leaving factory,guarantee no somke,efficient combustion.KV30 is also very durable,one of our customer uses it for more than five years with no break down.

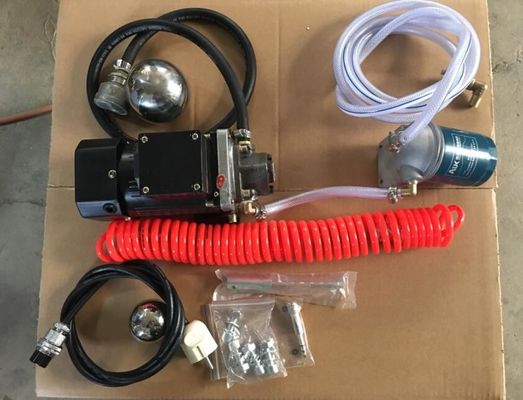

The parcel has the whole oil pump&filter system,extra spare parts for further maintainance.
Parameter
| Model |
KV30 |
| Max.output heat |
300,000Kcal/h (12,00,000Btu/h) |
| Output power |
210-270kw |
| Oil consumption |
15-21 liter/hour |
| Tube diameter |
114mm |
| Tube length |
135mm |
| Heating pipe |
1.0kw |
| Motor power |
180w |
| Nozzle |
siphon brass 3x2.0mm |
| Working pressure |
8 bar |
| Power |
220v 50hz or 110v 60hz |
| Size |
510x455x300mm |
| N.W |
26kg |
| Fuel |
all kinds of waste oil,diesel oil |
| Application |
0.5t boiler,furnace,oven,heater,grain dryer |
| ✔Available fuel list |
| used engine oil/motor oil |
used crankcase oil |
used transmission oil |
used hydraulic oil |
| used synthetic oil |
waste machine shop cutting oil |
used grades #1,#3,#4 heating oils |
used mixed oil |
| used diesel oil |
used cooking oil |
used vegetable oil/animal fat oil |
Soybean oil |
| diesel oil |
waste car oil |
used tyre/rubber pyrolysis oil |
waste plastic oil........ |
| ✘gasoline,heavy oil,water |
fire test
special tips when use
- Our burner must work with one unit external air compressor.For kv30 model,we recommend to use 0.3-0.5cbm/min air compressor
- Keep the gauge reading less than 1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to lock the number
- Oil pump will pump oil automatically,do not fill small tank by yourself.
- Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
- Please make sure no water in the fuel
- Do not change original setting casually,such as air flap's position,distance between ignitors and flame ring.
- Do not touch the small oil tank,it can be very hot
- If you meet any trouble,please take a video for us,we will tell you how to manage.
Why choose KING VITAL burner
-Our burner is ture waste oil system,use pc board to control,not siemens controller
-Our burner is patented to be high efficient combustion
-test well before leave factory
-CE approval
-Environment friendly,own air pollution certificate issused by China Environmental Station
-Durable,no vulnerable parts,quality warranty for one year,spare parts for life time
About us
We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.
All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.
You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
