Open to Use Easy With Boiler Assembly Waste Motor Oil Burner KV05 30-60kw
Feature
KV05 is our small power model,various oil can be used,such as waste oil from car/motor,used oil from cooking,pyrolysis oil from tyre/rubber,clean oil,diesel oil etc.
Fully automatic,already assembled and tested well before leaving factory,easy to connect with boiler,no nurse needed.
Parameter
| Model |
KV05 |
| Max.output heat |
50,000Kcal/h (200,000Btu/h) |
| Output power |
30-60kw |
| Oil consumption |
3-5 liter/hour |
| Tube diameter |
114mm |
| Tube length |
135mm |
| Nozzle |
siphon brass 1x1.0mm |
| Heating pipe |
1.0kw |
| Motor power |
180w |
| Working pressure |
8 bar (0.8mpa 116psi) |
| Power |
220v 50hz or 110v 60hz |
| Burner Size(LxWxH) |
510x455x300mm |
| N.W |
25kg |
| Fuel |
all kinds of waste oil,diesel oil |
| Application |
0.1-0.2t boiler,furnace,oven,heater,grain dryer |
| ✔Available fuel list |
| used engine oil/motor oil |
used crankcase oil |
used transmission oil |
used hydraulic oil |
| used synthetic oil |
waste machine shop cutting oil |
used grades #1,#3,#4 heating oils |
used mixed oil |
| used diesel oil |
used cooking oil |
used vegetable oil/animal fat oil |
Soybean oil |
| diesel oil |
waste car oil |
used tyre/rubber pyrolysis oil |
waste plastic oil........ |
| ✘gasoline,heavy oil,water |
control panel
special tips when use
- Our burner must work with one unit external air compressor.For kv05 model,we recommend to use 0.3-0.5cbm/min air compressor

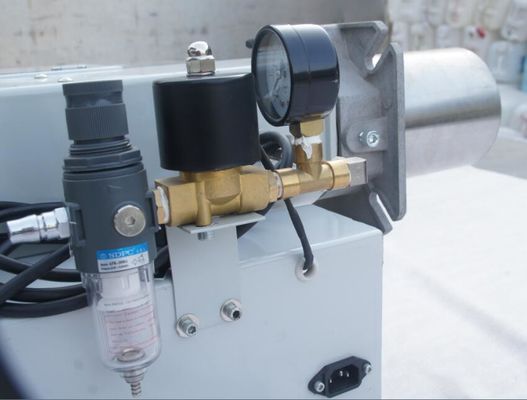

- Keep the gauge reading less than 1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to lock the number
- Oil pump will pump oil automatically,do not fill small tank by yourself.
- Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
- Please make sure no water in the fuel
- Do not change original setting casually,such as air flap's position.
- Do not touch the small oil tank,it can be very hot
- If you meet any trouble,please take a video for us,we will tell you how to manage.
Why choose KING VITAL burner
-Our burner is ture waste oil system,use pc board to control,not siemens controller
-Our burner is patented to be high efficient combustion
-test well before leave factory
-CE approval
-Environment friendly,own air pollution certificate issused by China Environmental Station
-Durable,no vulnerable parts,quality warranty for one year,spare parts for life time
About us
We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.
All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.
You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
