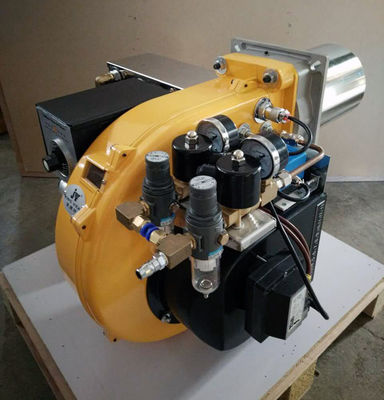

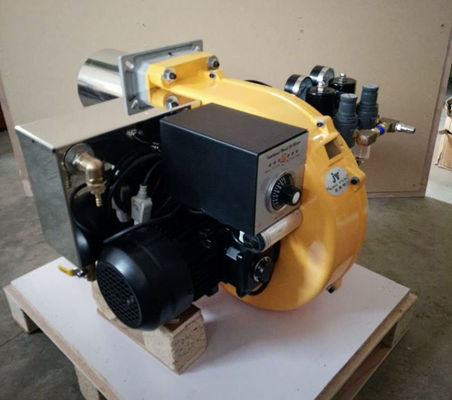

Two Flame Stage KV60 Waste Motor Oil Burner Capacity Of 500kW For Boiler Reactor
Feature
KV60 has three safe precaution
1) two oil float,to control oil leval in the right position
2) two high sensitive flame detector,stops burner when there is no light
3) oil pump,it will stop the burner when oil pumped more than 2 mins
Parameter
| Model |
KV60 |
| Max.output heat |
600,000Kcal/h (24,00,000Btu/h) |
| Output power |
450-560kw |
| Oil consumption |
40-60 liter/hour |
| Tube diameter |
160mm |
| Tube length |
188mm |

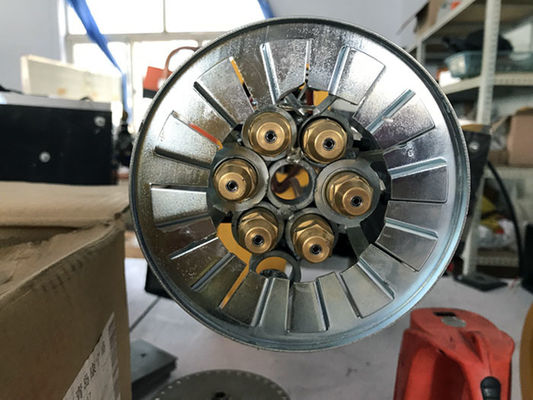

| Nozzle |
siphon brass 6x2.0mm |
| Heating pipe |
1.1kw |
| Motor power |
750w |
| Working pressure |
8 bar (0.8mpa 116psi) |
| Power |
220v 50hz or 110v 60hz |
| Size |
640x550x660mm |
| N.W |
34kg |
| Fuel |
all kinds of waste oil,diesel oil |
| Application |
1t boiler,furnace,oven,heater,grain dryer |
| ✔Available fuel list |
| used engine oil/motor oil |
used crankcase oil |
used transmission oil |
used hydraulic oil |
| used synthetic oil |
waste machine shop cutting oil |
used grades #1,#3,#4 heating oils |
used mixed oil |
| used diesel oil |
used cooking oil |
used vegetable oil/animal fat oil |
Soybean oil |
| diesel oil |
waste car oil |
used tyre/rubber pyrolysis oil |
waste plastic oil........ |
| ✘gasoline,heavy oil,water |
customer visit
special tips when use
- Our burner must work with one unit external air compressor.For kv60 model,we recommend to use 0.7-1.0cbm/min air compressor
- Keep the first gauge reading less than 1kg/cm2,the second one between 0.5-1kg/cm2.Pleae “lift↑” first then clockwise rotate slowly to open air regualtor,press down to clock the number.
- Oil pump will pump oil automatically,do not fill small tank by yourself.
- Adjust heating temperature to 90degree if use waste oil.100degree or above 100degree if use waste vegetable oil,0 degree if use diesel oil.
- Please make sure no water in the fuel
- Do not change original setting casually,such as air flap's position.
- Do not touch the small oil tank,it can be very hot
- If you meet any trouble,please take a video for us,we will tell you how to manage.
Why choose KING VITAL burner
-Our burner is ture waste oil system,use pc board to control,not siemens controller
-Our burner is patented to be high efficient combustion
-test well before leave factory
-CE approval
-Environment friendly,own air pollution certificate issused by China Environmental Station
-Durable,no vulnerable parts,quality warranty for one year,spare parts for life time
About us
We are direct factory for waste oil burner&heater in China for more than15 years.We have our own machine tool workshop,forge workshop,assemble room,quality detection department,most professional enthusiastic foreign team.From manufacture to after sales services,you don't have to worry a thing.OEM,ODM are also available.
All our staff has ten years working experiences,some start their career when company founded.We are more like a family now.
You are welcome to send us an inquiry at any time,we will reply within 12 hours.Please also feel free to visit us!
